Product Summary

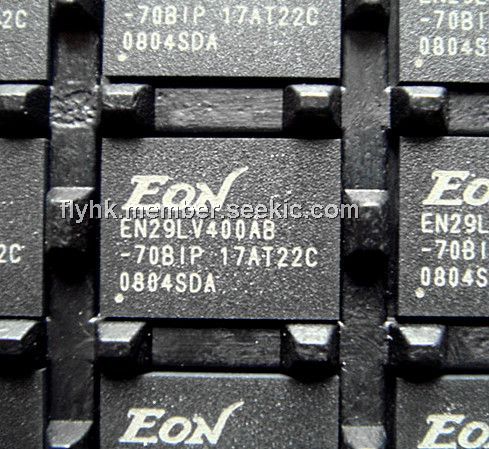

The EN29LV400AB-70BIP is a 4-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 524,288 bytes or 256,144 words. Any byte can be programmed typically in 8μs. The EN29LV400AB-70BIP features 3.0V voltage read and write operation, with access times as fast as 45ns to eliminate the need for WAIT states in high-performance microprocessor systems. The EN29LV400AB-70BIP has separate Output Enable (OE#), Chip Enable (CE#), and Write Enable (WE#) controls, which eliminate bus contention issues. The EN29LV400AB-70BIP is designed to allow either single Sector or full chip erase operation, where each Sector can be individually protected against program/erase operations or temporarily unprotected to erase or program. The EN29LV400AB-70BIP can sustain a minimum of 100K program/erase cycles on each Sector.

Parametrics

EN29LV400AB-70BIP absolute maximum ratings: (1)Input Leakage Current, ILI: ±1μA; (2)Output Leakage Current, ILO: ±1μA; (3)Supply Current (Program or Erase), ICC3: 15 to 30 mA; (4)Input Low Voltage, VIL: -0.5 to 0.8V; (5)Input High Voltage, VIH: 0.7xVcc to Vcc±0.3V; (6)Output Low Voltage, VOL: 0.45V.

Features

EN29LV400AB-70BIP features: (1)3V, single power supply operation; (2)High performance; (3)Low power consumption (typical values at 5MHz); (4)Flexible Sector Architecture; (5)High performance program/erase speed; (6)Single Sector and Chip Erase; (7)Sector Unprotect Mode.

Diagrams

EN29LV400AB-70BIP BLOCK DIAGRAM
