Product Summary
The AME8810DEGT positive, linear regulator features low quiescent current (30mA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving SOP package is attractive for Pocket and Hand Held applications. This AME8810DEGT has both Thermal Shutdown, and Current Fold-back to prevent device failure under the Worst of operating conditions. The AME8810DEGT is stable with an output capacitance of 2.2mF or greater.
Parametrics
AME8810DEGT absolute maximum ratings: (1)Input Voltage: 8V; (2)Output Current: 1A; (3)Input, Output Voltage GND: -0.3 to VIN+0.3 V; (4)ESD Classification: B.
Features
AME8810DEGT features: (1)Very Low Dropout Voltage; (2)Guaranteed 600mA Output; (3)Accurate to within 1.5%; (4)30mA Quiescent Current; (5)Over-Temperature Shutdown; (6)Current Limiting; (7)Short Circuit Current Fold-back; (8)Space-Saving SOT-89, SOT-223; (9)Factory Pre-set Output Voltages; (10)Low Temperature Coefficient.

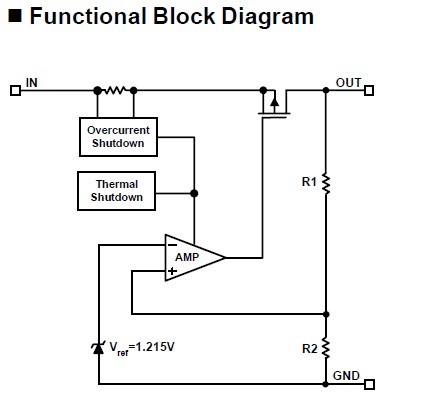

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AME8810DEGT |
AME |
Low Dropout (LDO) Regulators 2.5V 600mA CMOS |
Data Sheet |
|
|
||||||||||||
|
AME8810DEGTZ |
AME |
Low Dropout (LDO) Regulators 2.5V 600mA CMOS |
Data Sheet |
|
|
||||||||||||
