Product Summary
The M38184MA-312FP is a 8-bit microcomputer based on the 740 family core technology. The 3818 group is designed mainly for VCR timer/function control, and include six 8-bit timers, a fluorescent display circuit, a PWM function, and 8 channel A-D converter.
Parametrics
M38184MA-312FP absolute maximum ratings: (1)power source voltage, Vcc: -0.3 to 7.0V; (2)pull-down power source voltage, Vee: Vcc-40 to Vcc+0.3V; (3)input voltage p4o, Vi: -0.3 to Vcc+0.3V; (4)power dissipation, Pd: 600mw; (5)operating tempreture, Topr: -10 to 85℃; (6)storage temprature, Tstg: -40 to 125℃.
Features
M38184MA-312FP features: (1)basic machine language instructions: 71; (2)the minimum instruction execution time: 0.48us; (3)programmable input/output ports: 67; (4)high breakdownm voltage I/O ports: 12; (5)high breakdownm voltage output ports: 20.

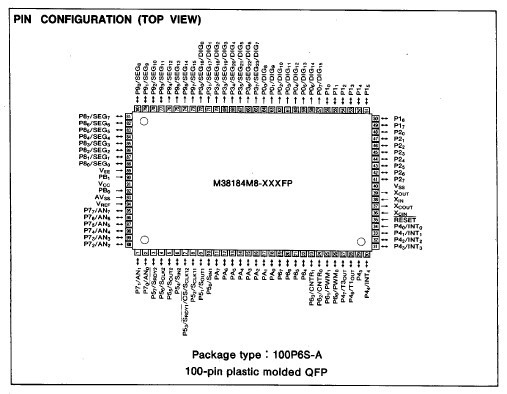

Diagrams
 |
