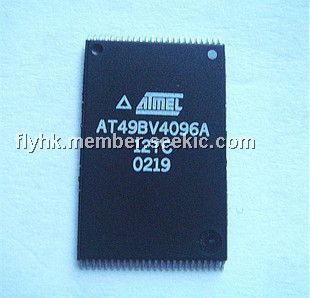

AT49BV4096A-12TC

3-volt, 4-megabit, Flash Memory, TSSOP48, -0.6V to +6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.50

PartNumber:: AT49BV4096A-12TC

Brand:: ATMEL Corporation - ATMEL | Pack: TSSOP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-18

From Other Seller

Part Number:AT49BV4096A-12TC
US $1.00 - 2.50
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT49BV4096A-12TC is a 3-volt, 4-megabit Flash Memory organized as 524,288 words of 8 bits each or 256K words of 16 bits each. Manufactured with Atmels advanced nonvolatile CMOS technology, the AT49BV4096A-12TC offers access times to 120 ns with power dissipation of just 67 mW at 2.7V read. When deselected, the CMOS standby current is less than 50 mA. The device contains a user-enabled “boot block” protection feature.

Parametrics

AT49BV4096A-12TC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on RESET with Respect to Ground: -0.6V to +13.5V.

Features

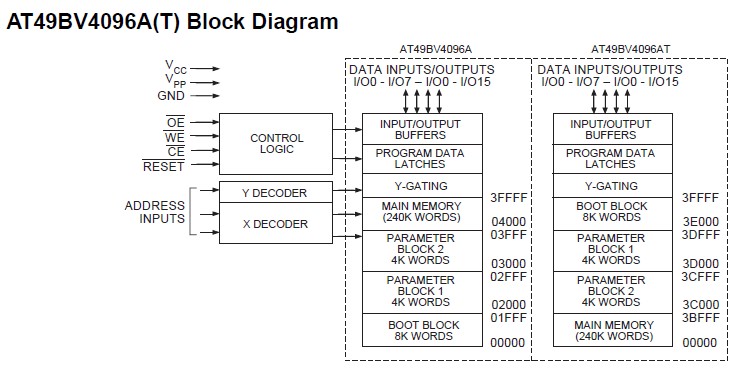

AT49BV4096A-12TC features: (1)2.7V to 3.6V Read/Write Operation; (2)Fast Read Access Time - 120 ns; (3)Internal Erase/Program Control; (4)Sector Architecture: One 8K Words (16K bytes) Boot Block with Programming Lockout; Two 4K Words (8K bytes) Parameter Blocks; One 240K Words (480K bytes) Main Memory Array Block; (5)Fast Sector Erase Time - 10 seconds; (6)Byte-by-Byte or Word-By-Word Programming - 30 ms Typical; (7)Hardware Data Protection; (8)DATA Polling For End Of Program Detection; (9)Low-Power Dissipation; (10)25 mA Active Current; (11)50 mA CMOS Standby Current; (12)Typical 10,000 Write Cycles.
