Product Summary

The TMS320F2812PGFA is a highly integrated, high-performance Digital Signal Processor for demanding control applications.

Parametrics

TMS320F2812PGFA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDDA1, VDDA2, VDDAIO, and AVDDREFBG: - 0.3 V to 4.6 V; (2)Supply voltage range, VDD, VDD1: - 0.5 V to 2.5 V; (3)VDD3VFL range: - 0.3 V to 4.6 V; (4)Input voltage range, VIN: - 0.3 V to 4.6 V; (5)Output voltage range, VO: - 0.3 V to 4.6 V; (6)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (7)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (8)Operating ambient temperature ranges, TA: A version (GHH, PGF, PBK): - 40℃ to 85℃, TA: S version (GHH, PGF, PBK): - 40℃ to 125℃, TA: Q version (GHH, PGF, PBK): - 40℃ to 125℃; (9)Storage temperature range, Tstg: - 65℃ to 150℃.

Features

TMS320F2812PGFA features: (1)High-Performance Static CMOS Technology: 150 MHz (6.67-ns Cycle Time), Low-Power (1.8-V Core @135 MHz, 1.9-V Core @150 MHz, 3.3-V I/O) Design; (2)JTAG Boundary Scan Support High-Performance 32-Bit CPU (TMS320C28x): 16 x 16 and 32 x 32 MAC Operations, 16 x 16 Dual MAC, Harvard Bus Architecture; (3)Boot ROM (4K x 16): With Software Boot Modes, Standard Math Tables; (4)External Interface (2812): Up to 1M Total Memory, Programmable Wait States, Programmable Read/Write Strobe Timing, Three Individual Chip Selects.

Diagrams

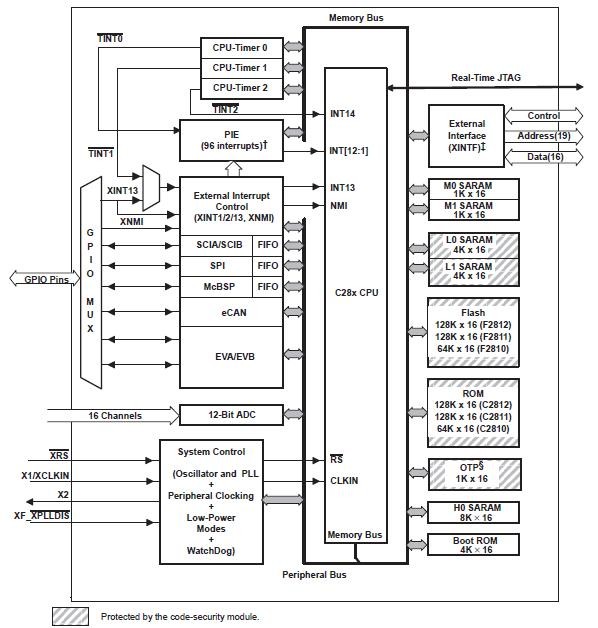

TMS320F2812PGFA block diagram
