Product Summary
The TD62504FG is comprised of seven or five NPN transistor array. For proper operation, the substrate (SUB) must be connected to the most negative voltage. Applications include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
TD62504FG absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 35V; (2)Collector-base voltage, VCBO: 50V; (3)Collector current, IC: 200 mA/ch; (4)Input voltage, VIN: -0.5 to 30V; (5)Input current, IIN: 25mA; (6)Isolation voltage, VSUB: 35V; (7)Power dissipation, PG, FG PD: 1.0W; (8)Operating temperature, Topr: -40 to 85℃; (9)Storage temperature, Tstg: -55 to 150℃
Features
TD62504FG features: (1)Output current (single output) 200 mA (max); (2)High sustaining voltage output 35 V (min); (3)Inputs compatible with various types of logic.; (4)TD62504PG/FG: RIN = 10.5 kΩ, 6 to 15 V P-MOS, C-MOS; (5)Package Type-PG: DIP-16 pin; (6)Package Type-FG: SOP-16 pin.

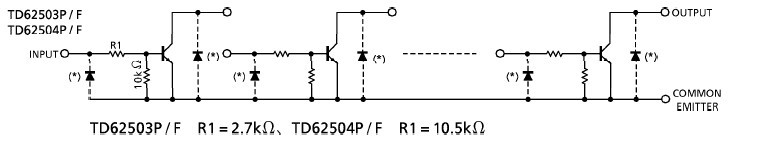

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62504FG |
Other |
|
Data Sheet |
Negotiable |
|
||||
