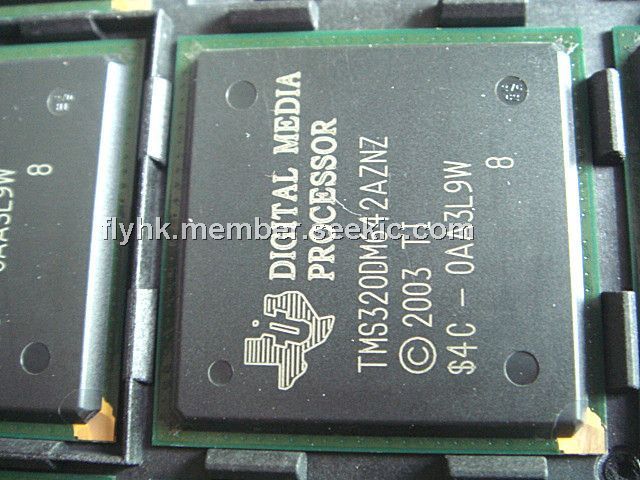

TMS320DM642AZNZ6

DSP, BGA, -0.3V to 4V, High-Performance Digital Media Processor, SDRAM

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~20.00

PartNumber:: TMS320DM642AZNZ6

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-22

From Other Seller

Part Number:TMS320DM642AZNZ6
US $8.00 - 20.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TMS320DM642AZNZ6 DSP (including the TMS320DM642 device) is the highest-performance fixed-point DSP generation in the TMS320C6000 DSP platform. The TMS320DM642AZNZ6 device is based on the second-generation high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture (VelociTI.2) developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The TMS320DM642AZNZ6 is a code-compatible member of the C6000 DSP platform.

Parametrics

TMS320DM642AZNZ6 absolute maximum ratings: (1)Supply voltage ranges: -0.3 V to 4 V; (2)Input voltage ranges: -0.5 V to DVDD + 0.5 V; (3)Output voltage ranges: -0.5 V to DVDD + 0.5 V; (4)Operating case temperature ranges, TC: -40℃ to 105℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Package Temperature Cycling: Temperature Range: -40℃ to 125℃, Number of Cycles: 500.

Features

TMS320DM642AZNZ6 features: (1)High-Performance Digital Media Processor; (2)VelociTI.2 Extensions to VelociTI Advanced Very-Long-Instruction-Word (VLIW) TMS320C64x DSP Core; (3)Instruction Set Features: Byte-Addressable (8-/16-/32-/64-Bit Data), 8-Bit Overflow Protection, Bit-Field Extract, Set, Clear; (4)Endianess: Little Endian, Big Endian; (5)64-Bit External Memory Interface (EMIF): Glueless Interface to Asynchronous Memories (SRAM and EPROM) and Synchronous Memories (SDRAM, SBSRAM, ZBT SRAM, and FIFO).
