Product Summary

The 74HC193 is a Presettable synchronous 4-bit binary up/down counter. Separate up/down clocks, CPU and CPD respectively, simplify operation. The outputs change state synchronously with the LOW-to-HIGH transition of either clock input. If the CPU clock is pulsed while CPD is held HIGH, the 74HC193 will count up. If the CPD clock is pulsed while CPU is held HIGH, the device will count down. Only one clock input can be held HIGH at any time, or erroneous operation will result. The 74HC193 can be cleared at any time by the asynchronous master reset input (MR); it may also be loaded in parallel by activating the asynchronous parallel load input (PL).

Parametrics

74HC193 absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7.0 V; (2)IIK input clamping current: ±20 mA; (3)IOK output clamping current: ±20 mA; (4)IO output current: ±25 mA; (5)ICC supply current: 50 mA; (6)IGND ground current: -50 mA; (7)Tstg storage temperature: -65 to +150 ℃; (8)Ptot total power dissipation: 750 mW.

Features

74HC193 features: (1)Synchronous reversible 4-bit binary counting; (2)Asynchronous parallel load; (3)Asynchronous reset; (4)Expandable without external logic; (5)Output capability: standard; (6)ICC category: MSI.

Diagrams

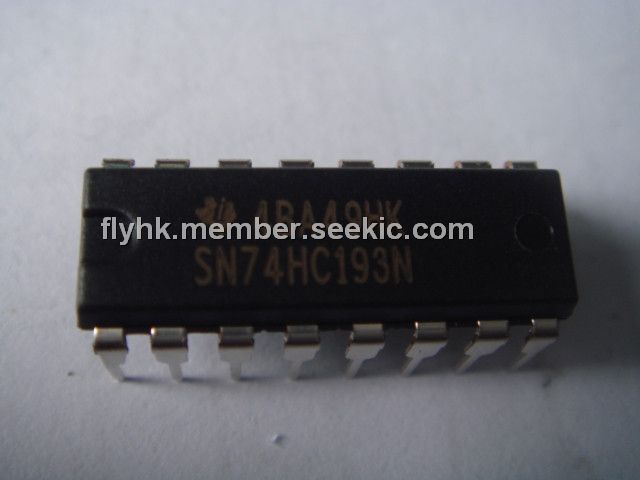

74HC193 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC193D
74HC193D

NXP Semiconductors

Counter ICs 4BIT COUNTR U/D SYNC

Data Sheet

Negotiable
74HC193D,652
74HC193D,652

NXP Semiconductors

Counter ICs 4BIT COUNTR U/D SYNC

Data Sheet

0-1: $0.17
1-25: $0.15
25-100: $0.15
100-250: $0.14
74HC193D,653
74HC193D,653

NXP Semiconductors

Counter Shift Registers 4-BIT BINARY U/D COUNTER

Data Sheet

0-1: $0.22
1-25: $0.16
25-100: $0.14
100-250: $0.13
74HC193DB
74HC193DB

NXP Semiconductors

Counter ICs 4BIT BIN UP/DN CNTER SYNCHRONOUS

Data Sheet

Negotiable
74HC193DB,112
74HC193DB,112

NXP Semiconductors

Counter ICs 4BIT BIN UP/DN CNTER

Data Sheet

0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
74HC193DB,118
74HC193DB,118

NXP Semiconductors

Counter Shift Registers 4-BIT BINARY UP/DOWN

Data Sheet

0-1450: $0.22
1450-2000: $0.22
2000-3000: $0.21
3000-6000: $0.20
74HC193DB-T
74HC193DB-T

NXP Semiconductors

Counter ICs 4-BIT BINARY UP/DOWN COUNTER

Data Sheet

Negotiable
74HC193N,652
74HC193N,652

NXP Semiconductors

Counter ICs 4-BIT BINARY UP/DOWN COUNTER

Data Sheet

0-1: $0.41
1-25: $0.36
25-100: $0.32
100-250: $0.27
