TMS320LF2407APGEA

32-bit Real-time MCUs, 24x 16-bit Series, QFP, DSP, 0.3 V to 4.6 V, High-Performance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~12.00

PartNumber:: TMS320LF2407APGEA

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-18

From Other Seller

Part Number:TMS320LF2407APGEA
US $8.00 - 12.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

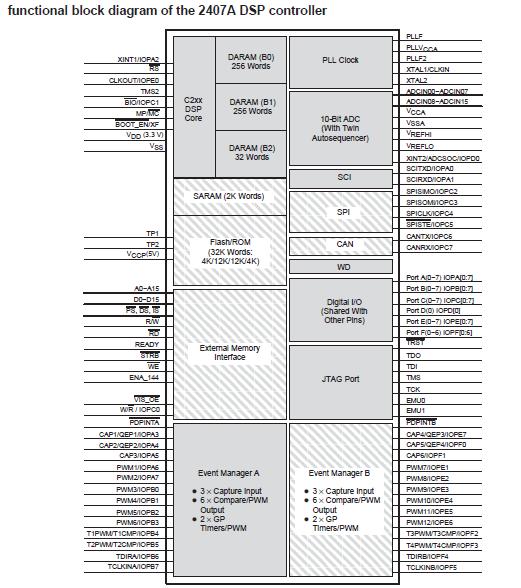

The TMS320LF2407APGEA is a digital signal processor (DSP) controller. It is a part of the TMS320C2000 platform of fixed-point DSPs. The TMS320LF2407APGEA offers the enhanced TMS320 DSP architectural design of the C2xx core CPU for low-cost, low-power, and high-performance processing capabilities. Several advanced peripherals, optimized for digital motor and motion control applications, have been integrated to provide a true single-chip DSP controller. While code-compatible with the existing C24x DSP controller devices, the TMS320LF2407APGEA offers increased processing performance (40 MIPS) and a higher level of peripheral integration.

Parametrics

TMS320LF2407APGEA absolute maximum ratings: (1)Supply voltage range, VDD, PLLVCCA, VDDO, and VCCA: 0.3 V to 4.6 V; (2)VCCP range: 0.3 V to 5.5 V; (3)Input voltage range, VIN: 0.3 V to 4.6 V; (4)Output voltage range: 0.3 V to 4.6 V; (5)Input clamp current, IIK (VIN < 0 or VIN > VCC): ± 20 mA; (6)Output clamp current, IOK (VO < 0 or VO > VCC): ± 20 mA; (7)Operating free-air temperature ranges, TA: A version: -40℃ to 85℃, S version: -40℃ to 125℃; (8)Junction temperature range, TJ: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TMS320LF2407APGEA features: (1)High-Performance Static CMOS Technology: 25-ns Instruction Cycle Time (40 MHz), 40-MIPS Performance, Low-Power 3.3-V Design; (2)Based on TMS320C2xx DSP CPU Core: Code-Compatible With F243/F241/C242, Instruction Set and Module Compatible With F240/C240; (3)On-Chip Memory: Up to 32K Words x 16 Bits of Flash EEPROM (4 Sectors) or ROM, Programmable "Code-Security" Feature for the On-Chip Flash/ROM, Up to 2.5K Words x 16 Bits of Data/Program RAM, 544 Words of Dual-Access RAM, Up to 2K Words of Single-Access RAM.
