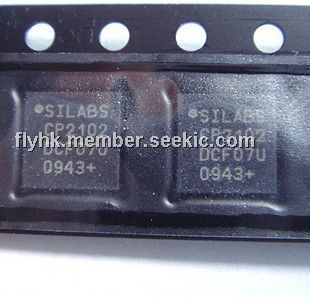

CP2102-GMR

USB to uart bridge controller, QFN, -0.3 to 5.8V, Integrated 1024-Byte EEPROM, single-chip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: CP2102-GMR

Brand:: Silicon Laboratories - SLAB | Pack: QFN | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Andy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-18

From Other Seller

Part Number:CP2102-GMR
US $0.80 - 1.00
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

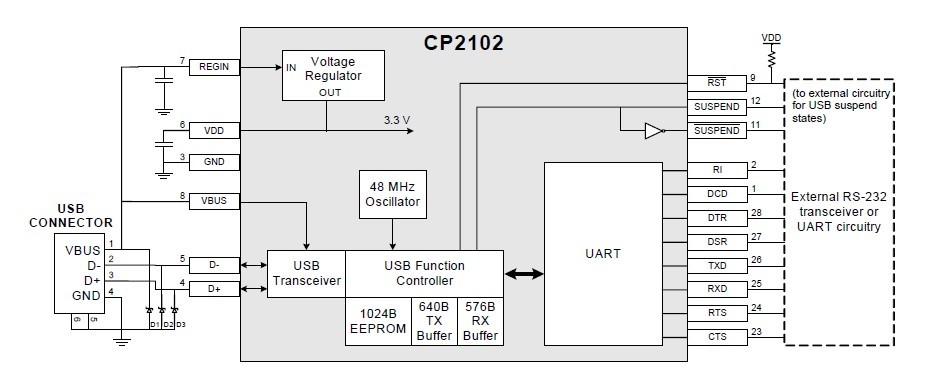

The CP2102-GMR is a single-chip USB to uart bridge controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102-GMR includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 × 5 mm QFN-28 package. No other external USB components are required. The on-chip EEPROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications.

Parametrics

CP2102-GMR absolute maximum ratings: (1)Ambient temperature under bias: min=-55℃, max=125℃; (2)Storage Temperature: min=-65℃, max=150℃; (3)Voltage on any I/O Pin or RST with respect to GND: min=-0.3V, MAX=5.8V; (4)Voltage on VDD with respect to GND: min=-0.3V, max=4.2V; (5)Maximum Total current through VDD and GND: max=50mA; (6)Maximum output current sunk by RST or any I/O pin: max=100mA.

Features

CP2102-GMR features: (1)Integrated USB transceiver; no external resistors required; (2)Integrated clock; no external crystal required; (3)Integrated 1024-Byte EEPROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings; (4)On-chip power-on reset circuit; (5)On-chip voltage regulator: 3.3 V output; (6)100% pin and software compatible with CP2101.
