Product Summary

The AD9751AST is a High-Speed TxDAC+ D/A Converter. It integrates a high-quality 10-bit TxDAC+ core, a voltage reference, and digital interface circuitry into a small 48-lead LQFP package. The AD9751AST offers exceptional ac and dc performance while supporting update rates up to 300 MSPS. The device has been optimized for ultrahigh-speed applications up to 300 MSPS where data rates exceed those possible on a single data interface port DAC. The applications of the AD9751AST include: Communications: LMDS, LMCS, MMDS, Base Stations, Digital Synthesis, QAM and OFDM.

Parametrics

AD9751AST absolute maximum ratings: (1)AVDD, DVDD, CLKVDD, PLLVDD: –0.3 to +3.9 V; (2)AVDD, DVDD, CLKVDD, PLLVDD: –3.9 to +3.9 V; (3)ACOM, DCOM, CLKCOM, PLLCOM: –0.3 to +3.9 V; (4)REFIO, REFLO, FSADJ: –0.3 to AVDD + 0.3 V; (5)IOUTA, IOUTB: –1.0 to AVDD + 0.3 V; (6)Digital Data Inputs (DB9 to DB0): –0.3 to DVDD + 0.3 V; (7)CLK+/CLK–, PLLLOCK: –0.3 to CLKVDD + 0.3 V; (8)DIV0, DIV1, RESET: –0.3 to CLKVDD + 0.3 V; (9)LPF: –0.3 to PLLVDD + 0.3 V; (10)Junction Temperature: 150 ℃; (11)Storage Temperature: –65 +150 ℃; (12)Lead Temperature (10 sec): 300 ℃.

Features

AD9751AST features: (1)10-Bit Dual Muxed Port DAC; (2)300 MSPS Output Update Rate; (3)Excellent SFDR and IMD Performance; (4)SFDR to Nyquist @ 25 MHz Output: 64 dB; (5)Internal Clock Doubling PLL; (6)Differential or Single-Ended Clock Input; (7)On-Chip 1.2 V Reference; (8)Single 3.3 V Supply Operation; (9)Power Dissipation: 155 mW @ 3.3 V; (10)48-Lead LQFP.

Diagrams

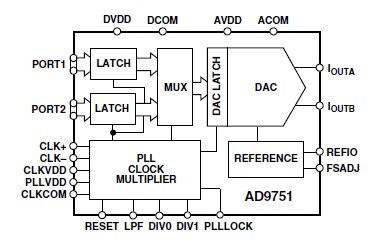

AD9751AST block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9751AST
AD9751AST

Analog Devices Inc

IC DAC 10BIT 300MSPS 48-LQFP

Data Sheet

Negotiable
AD9751ASTRL
AD9751ASTRL

Analog Devices Inc

IC DAC 10BIT 300MSPS 48-LQFP

Data Sheet

Negotiable
AD9751ASTZ
AD9751ASTZ


IC DAC 10BIT 300MSPS 48-LQFP

Data Sheet

0-1: $19.97
1-10: $18.47
10-100: $15.78
100-250: $14.48
250-500: $13.78
500-1000: $13.31
AD9751ASTZRL
AD9751ASTZRL


IC DAC 10BIT 300MSPS 48LQFP

Data Sheet

0-2000: $13.31
