Product Summary
The 1.5KE27CA is a 1500 Watt MosorbE Zener Transient Voltage Suppressor. It is designed to protect voltage sensitive components from high voltage, high–energy transients. The 1.5KE27CA has excellent clamping capability, high surge capability, low zener impedance and fast response time. The1.5KE27CA is ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic axial leaded package and is ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/ consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.
Parametrics
1.5KE27CA absolute maximum ratings: (1)Peak Power Dissipation @ TL ≤ 25℃ PPK: 1500 Watts; (2)Steady State Power Dissipation @ TL ≤ 75℃, Lead Length = 3/8 PD: 5.0 Watts; Derated above TL = 75℃ PD: 20 mW/℃; (3)Thermal Resistance, Junction–to–Lead RθJL: 20 ℃/W; (4)Operating and Storage Temperature Range TJ, Tstg: -65 to +175 ℃.
Features
1.5KE27CA features: (1)Working Peak Reverse Voltage Range -5.8 V to 214 V; (2)Peak Power -1500 Watts @ 1 ms; (3)ESD Rating of Class 3 (>16 KV) per Human Body Model; (4)Maximum Clamp Voltage @ Peak Pulse Current; (5)Low Leakage < 5 μA above 10 V; (6)UL 497B for Isolated Loop Circuit Protection; (7)Response Time is typically < 1 ns.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1.5KE27CA |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 1500W 23.1V Bi-Directional |
Data Sheet |
|
|
||||||||||||
 |
1.5KE27CA/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V 5% Bidir |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5KE27CA-B |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 1500W 23.1V Bi-Directional |
Data Sheet |
|
|
||||||||||||
|
1.5KE27CA/23 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V Bidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5KE27CA/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V Bidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5KE27CA/4 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V Bidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
1.5KE27CA-E3/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V Bidirect |
Data Sheet |
|
|
||||||||||||
|

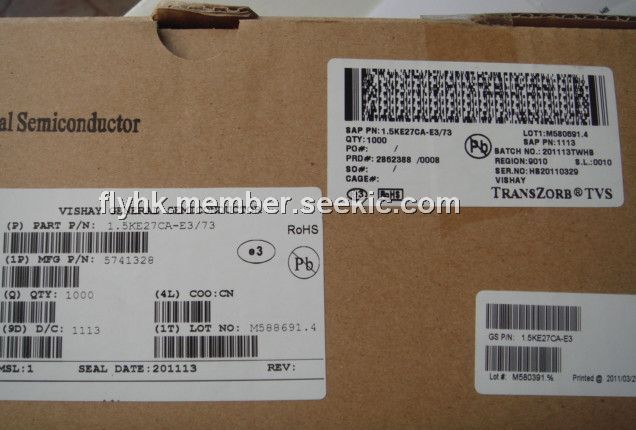

1.5KE27CA-E3/73 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 27V Bidirect |
Data Sheet |
|
|
||||||||||||
