Product Summary

The Q1900C-1N is designed as viterbi / trellis decoder. It is well suited for many commercial satellite communication networks, including INMARSAT and INTELSAT. The low-cost and high performance of the Q1900C-1N make it ideal for FEC requirements in systems such as direct broadcast satellites (DBS), microwave point-to-point data links, very small aperture terminals, digital modems, digital videl transmission systems, high speed data modems and military and NASA communication systems.

Parametrics

Q1900C-1N absolute maximum ratings: (1)storage temperature range: -65℃ to +150℃; (2) junction temperature: +150℃; (3)voltage on any input pin: -0.3V min and max Vdd+0.3 V; (4)voltage on Vdd and on any output pin: min -0.3V and max +7V.

Features

Q1900C-1N features: (1)viterbi mode rates 1/3, 1/2, 3/4 and 7/8; (2)trellis mode rates 2/3 and 3/4; (3)full duplex encode and decode in both viterbi and trellis modes; (4)large coding gains at Eb/No of 10^-5; (5)automatic phase synchronization for BPSK and QPSK in viterbi mode and for 8-PSK and 16-PSK in trellis mode; (6)data rates up to 30Mbps for viterbi mode and 90Mbps (16-PSK) for trellis mode; (7)3-bit soft decision or 1-bit hard decision decoder inputs for viterbi mode; (8)viterbi mode on-chip channel bit error rate (BER) monitor; (9)easy implementation of additional code rates; (10)processor interface simplifies control and status; (11)low-power CMOS implementation; (12)standard 84-pin PLCC or 100-pin VTQFP package.

Diagrams

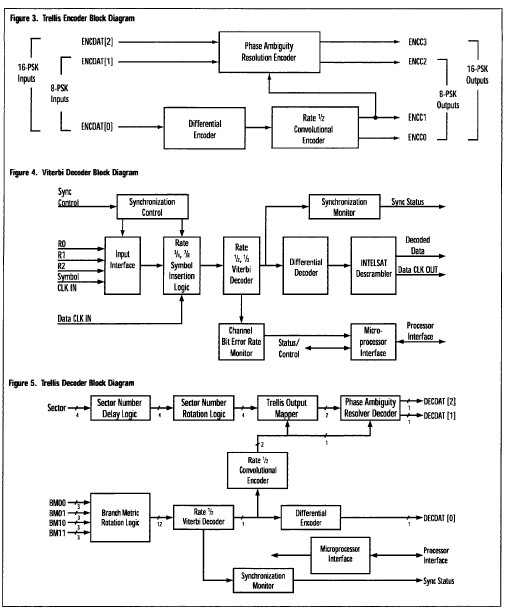

Q1900C-1N block diagram
