Product Summary
The AIC1117-25CY is a low dropout three terminal regulator with 800mA output current capability. The output voltage of AIC1117-25CY is adjustable with the use of a resistor divider. For fixed output voltage versions, the output voltage is internally set at 2.85V, 3.3V or 5V. Dropout is guaranteed at a maximum of 1.3V at maximum output current. Its low dropout voltage and fast transient response make AIC1117-25CY ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperatures.
Parametrics
AIC1117-25CY absolute maximum ratings: (1)VIN pin to ADJ/ GND pin: 7V; (2)Operating Junction Temperature Range: 0℃ to 125℃; (3)Storage Temperature Range: - 65℃ to 150℃; (4)Thermal Resistance (Junction to Case), SOT-223: 15℃/W; (5)Lead Temperature (Soldering) 10 sec: 260℃.
Features
AIC1117-25CY features: (1)Dropout Voltage 1.2V at 800mA Output Current; (2)Fast Transient Response; (3)Line Regulation typically at 0.015%; (4)Load Regulation typically at 0.1%; (5)Internal Thermal and Current Limiting; (6)Adjustable Output Voltage or Fixed 2.85V, 3.3V,5V; (7)Standard 3-Pin Power Packages.

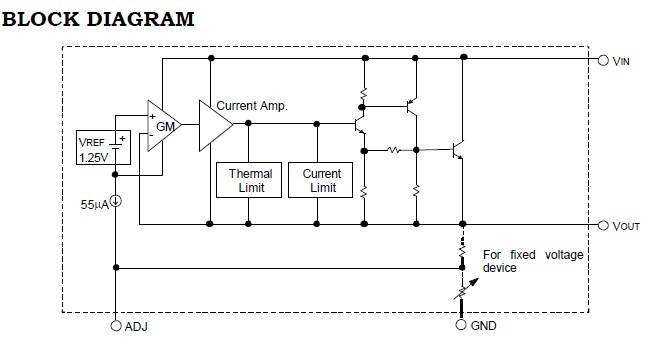

Diagrams
 |
